Drone power · Custom configurations
Semi-solid-state drone battery packs in 350 and 400 Wh/kg series, with 6S–24S configuration options.
350 Wh/kg series
400 Wh/kg series
Both the 350 Wh/kg and 400 Wh/kg series have 6S and 12S options.
For commercial and industrial drone projects, send the required Ah or Wh, battery space, weight limit, current needs, plug details, quantity and delivery country.
Request a custom pack quote →Drone and UAV integration requirements →These are semi-solid-state packs. Ask for the cell-versus-pack basis and test conditions behind the stated energy density.
Read the drone battery technology guideAsk for a configuration-specific datasheet, dimensional drawing and available validation information. Test reports and transport documents depend on the exact configuration and destination; availability is confirmed before order.
Ask about documents for your configurationAntBattery offers 350 Wh/kg and 400 Wh/kg semi-solid-state drone battery series. Both have 6S–24S configuration options. The specifications of the exact pack determine its energy, weight, size and current limits.
These products use semi-solid-state technology. They are not described as all-solid-state batteries. The supplied energy density ratings are 350 and 400 Wh/kg; ask whether each rating applies to cells or the complete pack and request its test conditions.

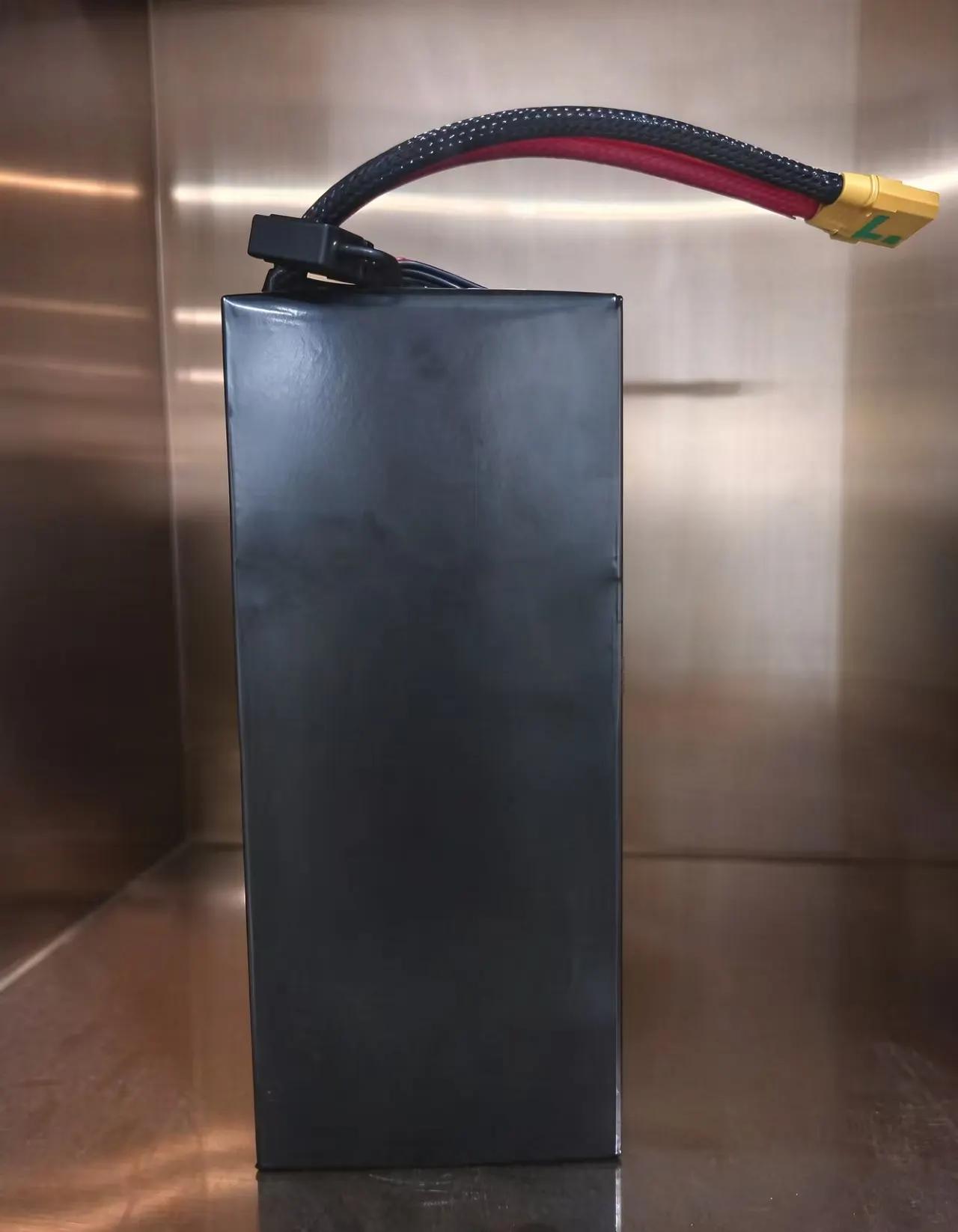

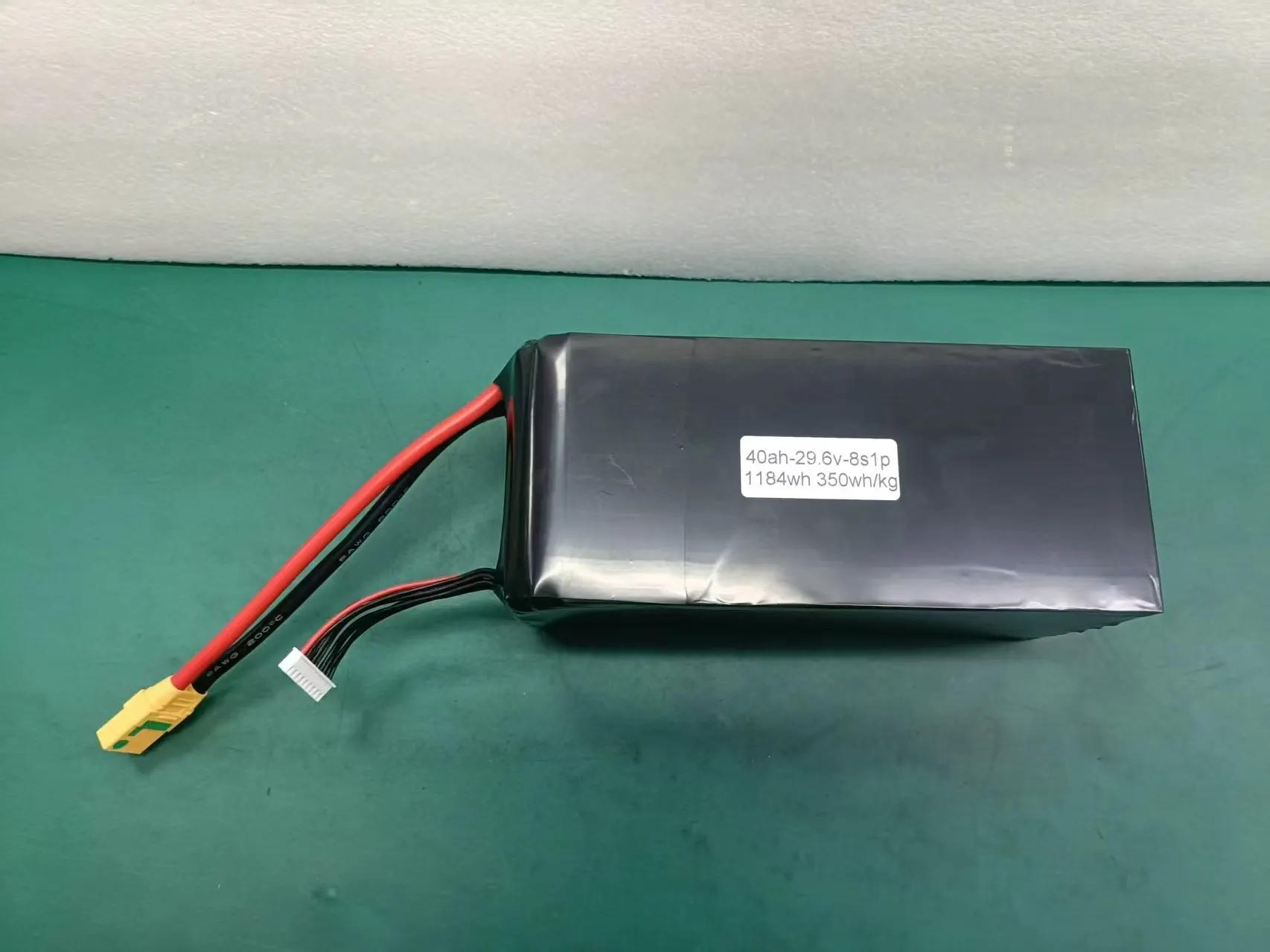

Yes. Both the 350 Wh/kg and 400 Wh/kg series have 6S and 12S inquiry options, within the 6S–24S range. The photos show an 8S reference pack and a 6S reference pack. Each selected configuration needs its own specifications.
The supplied ratings are 5C continuous charging, 5C continuous discharging and 10C burst. C-rate relates current to capacity in Ah. Confirm the exact pack’s charge limits, burst direction, duration and test conditions before use.
Match the required Ah or Wh to the aircraft voltage, current needs, battery space and weight limit. A series count or energy density rating alone does not tell you the capacity or weight of the finished pack.
Flight time depends on usable battery energy, aircraft power draw, payload, weather and operating limits. Energy density alone does not give a reliable flight-time estimate. Ask for pack data and test it with the intended aircraft.
Check the exact battery’s charging voltage, current limit, balance connection, plug and wiring against the charger. A matching series count or 5C rating alone does not confirm that a charger is suitable.
Request a quote for the selected series and configuration. Include the required capacity, case size, plugs, BMS or communication needs, quantity and delivery country so the quote covers the pack you need.
